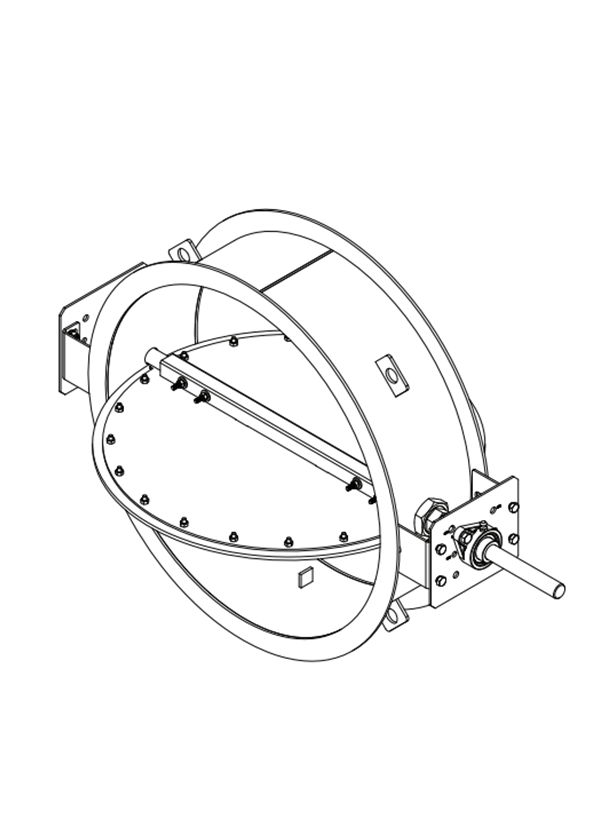

Model CD-99R

Bubble-Tight Damper
Single Blade - Round

The CD-99R is a bubble-tight industrial control damper designed for isolation and decontamination applications. Bubble-tight dampers are designed to have the lowest leakage ratings possible. Typical applications include industrial processing plants, laboratories, clean rooms, pharmaceutical facilities, nuclear facilities, DOE facilities, and other applications that require extremely low leakage. The CD-99R is tested for bubble-tight leakage ratings in accordance with AMCA 500-D up to 40 in. wg (10kPa). The damper frame is flanged for easy mounting and the blade seal is mechanically fastened to the blade.

Standard Construction

Frame: Mild steel.

Flange Type: Round.

Blade Material: Mild steel.

Blade Stops: Full open and full closed position pin stop.

Blade Style: Single round steel blade; reinforced where required.

Blade Seals: Silicone rubber, mechanically fastened to blade.

Axles: Plated steel.

Axle Seals: Double gland.

Bearings: Relubricable ball bearing, outboard mounting.

Damper Operator: Manual Locking Quadrant for dampers ≤ 16" Ø (406 Ø), Manual Hand Wheel for dampers > 16" Ø (406 Ø)

Finish: Hi-Pro poly powder coat, gray. (Two year warranty)

Minimum Size: 6" Ø (152 Ø)

Maximum Size: 48" Ø (1219 Ø)

Lifting Lugs: Four 1" (25) lifting lugs provided on dampers > 16" Ø (406 Ø)

Ratings

Leakage: Bubble-tight in accordance with AMCA-500D

Maximum Pressure: 40 in. wg. (10 kPa) - differential pressure

Maximum Velocity: 6500 fpm (33 m/s)

Temperature:
Minimum: -40^oF (-40^oC)

Maximum: 250^oF (121^oC)
