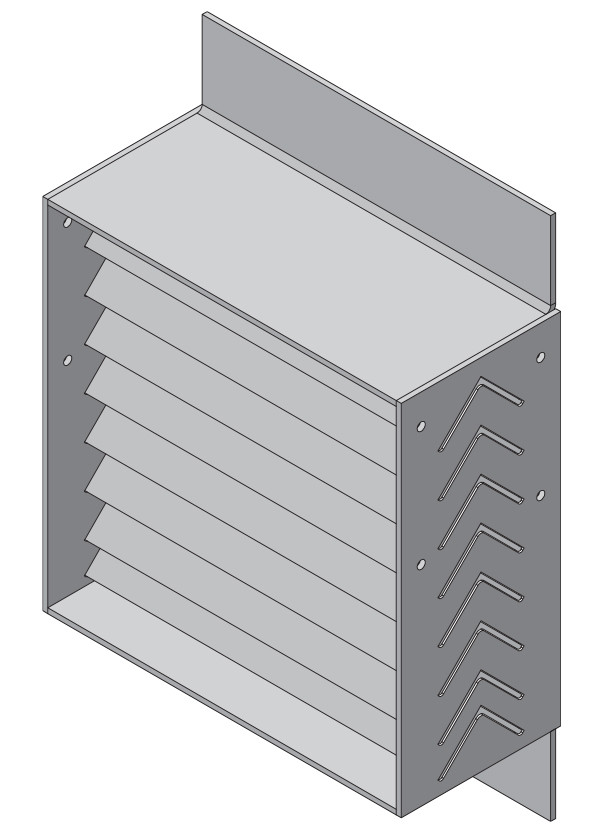

Model XSV-845
Steel Grille
8" Deep - Inverted V-Blade
The XSV-845 is a steel grille designed to FEMA 320 or FEMA 361 guidelines for shelters or safe rooms. It has been designed to withstand design loads from 260 PSF to 300 PSF produced by extreme wind phenomena such as tornadoes and hurricanes. The XSV-845 has been tested with impacts of 15lb 2" x 4"s traveling at 100 MPH per ICC 500. This makes the XSV-845 compliant for wind borne debris in all tornado or hurricane regions in the United States.
Standard Construction
Material: Hot rolled A36 steel.
Frames: 8" deep x 0.25" thick (203 x 6) channel.
Blades: Inverted V, 3/16" (5).
Screen: 1/2" x 0.063" (12.7 x 1.6) expanded and flattened stainless steel.
Mullion: Visible.
Flange:
Single section: 4-3/8" (111) on top and bottom.
Multiple section:
Single section high 4-3/8" (111) on top and bottom.
Single section wide: 4-3/8" (111) on jambs.
Minimum Size: 6" x 6" (152 x 152)
Maximum Size:
Single Section: 60" x 96" (1524 x 2436) 0r 120" x 60" (3048 x 1524)
Multiple Section:
Unlimited width x single section high
Single section wide x unlimited height
Ratings
Free Area: 9.4 ft2 (0.88 m2)
Performance @ Beginning Point of Water Penetration
Free Area Velocity: 755 fpm (3.84 m/s)
Std. Design Load:
290 psf for 60" x 90" (1524 x 2286) and 54" x 96" (1372 x 2438) top and bottom mounted units.
260 psf for 60" x 96" (1524 x 2438) top and bottom mounted units.
Up to 300 psf for all jamb mounted units.
