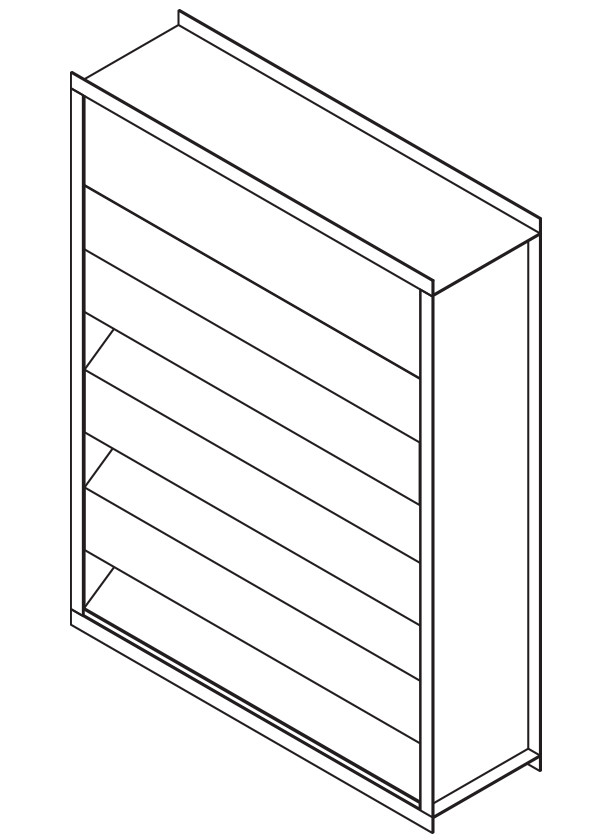

Model SAJ-835

Acoustical Louver
8" Deep - 35 Degree Insulated J-Blade

The SAJ-835 acoustical louver incorporates a J-blade and is designed for intake and exhaust applications where maximum noise reduction is required. The SAJ-835 is available in a wide array of finishes including custom color matching.

SAJ-835 8" Deep - 35 Degree Insulated J-Blade

Standard Construction

Material: Galvanized steel.

Frames: 8" deep x 0.081" thick (203 x 2) channel.

Blades: 35o x 22 ga. (0.85) thick J-style with a 26 ga. (0.55) thick perforated backing packed with noncombustible insulating material.

Screen: 1/2" x 0.063" (12.7 x 1.6) expanded and flattened aluminum.

Mullion: Visible.

Minimum Size: 12" x 18" (305 x 457)

Maximum Size:
Single Section: 48" x 96" (1219 x 2438)
Multiple Section: Unlimited



Ratings

Free Area: 5.3 ft2 (0.49 m2)



Performance @ Beginning Point of Water Penetration

Free Area Velocity: 808 fpm (4.11 m/s)

Air Volume Delivered: 4293 cfm (2.03 m3/s)

Pressure Loss: 0.07 in. wg. (17 Pa)



Velocity @ 0.15 in. wg. Pressure Loss: 1250 fpm (6.35 m/s)

Design Load: 30 psf
