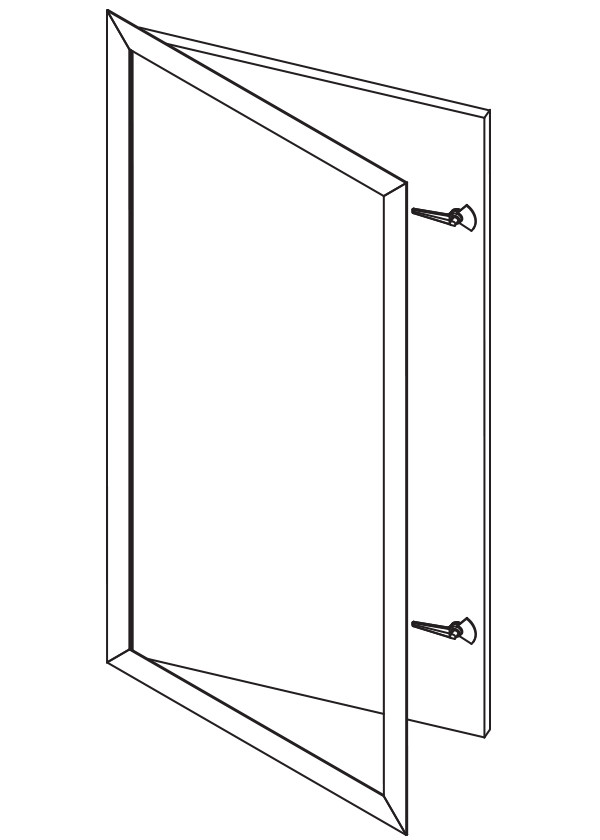

Model OAD

Open-In
Access Door

Model OAD walk-in access doors employ an extruded aluminum flanged frame and insulated door panel to provide a convenient and economical means to obtain access to components in ductwork and plenums rated for pressures up to 4.5" wg.

Standard Construction

Frame: Mill finish extruded aluminum (14 gauge equivalent)

Door Panel: 24 ga. (0.51) galvanized steel - double wall, insulated.

Insulation: 1" (25) thick fiberglass.

Hinge: Zinc plated steel, full height - piano type.

Gasket: Compressible synthetic closed cell neoprene - door to frame.

Latches: Handles interior and exterior.

Sizes: See chart on product sheet for available sizes
