Pottorff > Actuators and Accessories > Actuators - Electric > Modulating/Spring Return > AFB24-SR

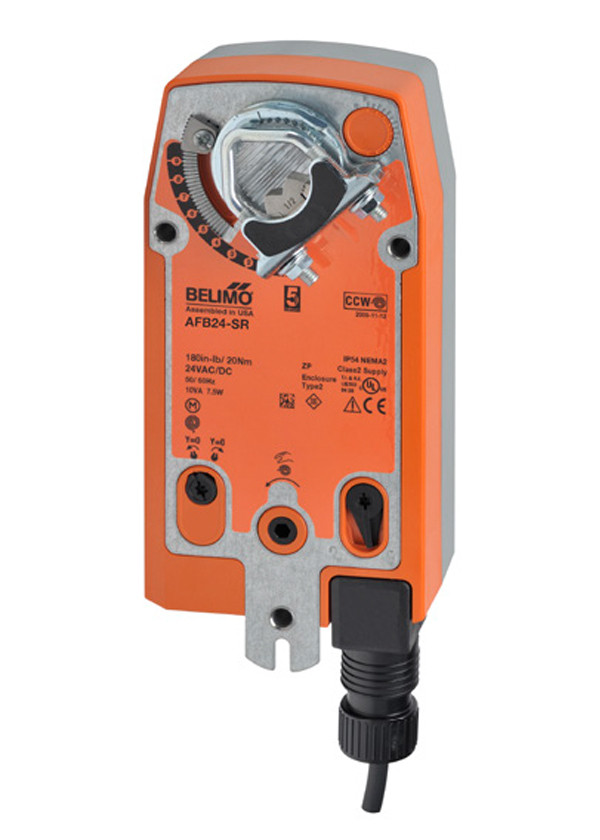

Model AFB24-SR

Modulating Spring Return
24 vac

The AFB24-SR proportional control, spring return actuator is intended for proportional modulation, fail-safe control of dampers in HVAC systems. The actuator operates in response to a 2 to 10 VDC, or with the addition of a 500 ohm resistor, a 4 to 20 mA control input from an electronic controller or positioner. A 2 to 10 VDC feedback signal is provided for position indication or master-slave applications.


AFB24-SR 24 vac
Click to view or check box to add to cart
