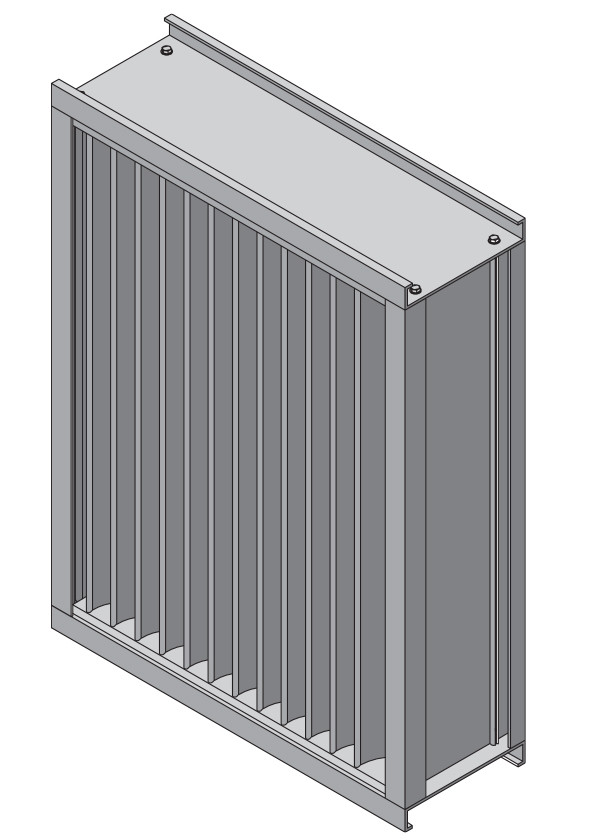

Model ECV-645-MD

Extruded Aluminum Louver
6" Deep - 45 Degree Vertical Blade

The ECV-645-MD is engineered and tested to withstand extreme loads, debris impact, and cyclic fatigue associated with the severe weather effects of hurricanes (Miami-Dade County approval #21-1122.03). For installation, the ECV-645-MD is available either with standard continuous angles or with an optional factory installed sleeve which eliminates the need for direct anchorage to the substrate. The ECV-645-MD is AMCA 540 and 550 listed, making it ideally suited for use in hurricane-prone and wind-borne debris regions as per the International Building Code.

Standard Construction

Material: Mill finish 6063-T5 extruded aluminum.

Frames: 6" deep x 0.125" thick (152 x 3) channel.

Blades: 45o x 0.081" (2) thick vertical chevron style.

Screen: 1/2" x 0.063" (12.7 x 1.6) expanded and flattened aluminum.

Mullion: Visible.

Minimum Size: 12" x 12" (305 x 303)

Maximum Size:
Single Section: 60" x 120" (1524 x 3048)
Multiple Section: Unlimited width x 120" (3048)

Shipping Weight: 10 lbs/ft2 (48 kg/m2)

Ratings

Free Area: 7.4 ft2 (0.68 m2)



Performance @ Beginning Point of Water Penetration

Free Area Velocity: 1250 fpm (6.35 m/s)

Air Volume Delivered: 9250 cfm (4.4 m3/s)

Pressure Loss: 0.15 in. wg. (37 Pa)



Velocity @ 0.15 in. wg. Pressure Loss: 1270 fpm (6.4 m/s)

Design Load: 150 psf

AMCA 540 and 550 Listed
AMCA Certified for Water Penetration, Air Performance and Wind-Driven Rain
Miami-Dade County approved: NOA No. 21-1122.03
Florida Building Code approved (2020-FBC): No. FL19137.1
