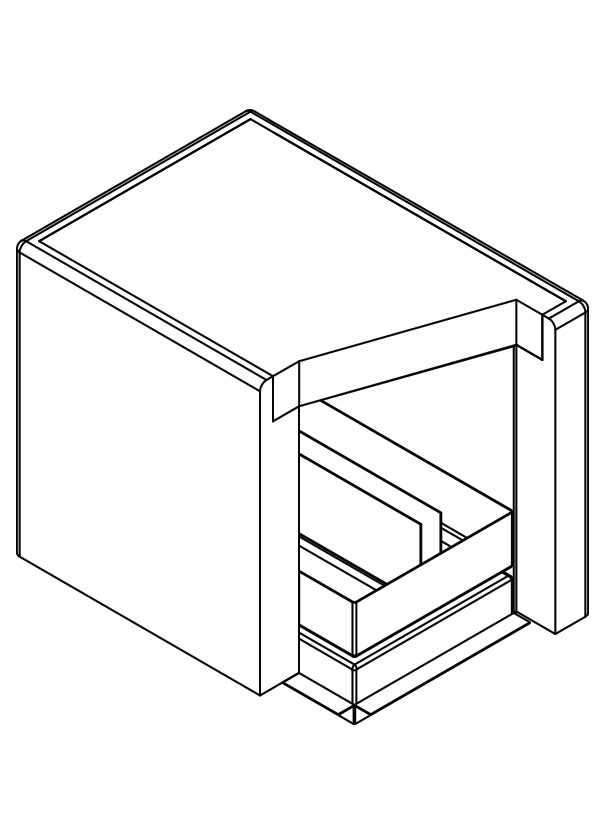

Model CFD-521-IP

1 Hour - Ceiling Radiation Damper
5-6.5 or 8.7 Insulated Duct Board Outlet Box

The CFD-521-IP ceiling radiation damper employs butterfly style blades for point-of-origin control of radiant heat in HVAC systems. The CFD-521-IP is installed horizontally in the ceiling membrane of combustible and non-combustible assemblies with fire resistance ratings up to and including 1 hour.

Standard Construction

Frame: 22 ga. (0.85) galvanized steel with integral 1-1/2" (38) thick fiberglass R-6.5 duct board outlet box.

Blades: 22 ga. (0.85) galvanized steel - butterfly. Insulated with ceramic refractory material for dampers larger than 114 in² (735 cm²)

Transition: None (field adaptation required).

Plaster Ground: 5/8" (16) deep x 1" (25) wide.

Fire Closure Device: Fusible Link.

Fire Closure Temperature: 165^oF (75^oC).

Minimum Size: 4" x 6" (102 x 152)

Maximum Size:
Square: 16" x 16" (406 x 406)
Rectangular: 24" (610) W or 20" (508) H with a maximum area of 256 in² (1652 cm²).

Ratings

UL 555C Fire Resistance Rating: 1 hour (horizontal, for use in floor designs L-521, L-528, L-546, L-558, L-562, L-574, L-576, L-581, P-583, P-585, M-509, M-540 and  in roof/ceiling designs P-522, P-533, P-538, P-545, P-547, P-579 and P-580.)

Thermal Resistance: R-6.5 or 8.7

UL 555C Listing: R14603

CSFM Listing: 3226-0368:104

Warnock Hersey Listing #: WHI-495-PSH-0177, -0178

Meets NFPA Standards: 90A and 101

Meets Building Code Standards: IBC, NBC, NFPA, SBC and UBC
