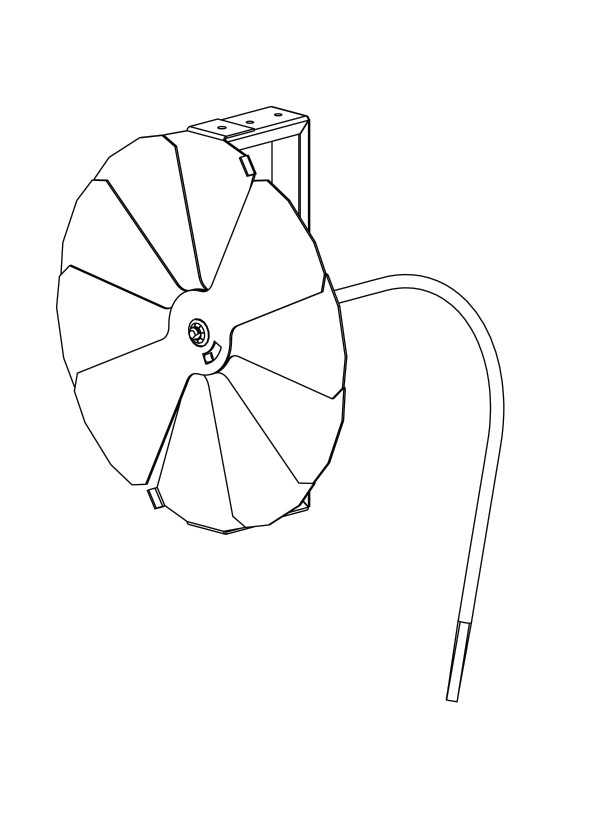

Remote Manual Control Damper
Radial Blade - Round
RCS-15R control dampers employ radial blades operated by a flexible cable for manual air control and balancing in low pressure and velocity applications. RCS-15R dampers are intended to be duct mounted in the air stream and adjusted at the face of diffusers.
Frame: 1" x 2-5/16" x 20 gauge (25 x 59 x 1) galvanized steel.
Blades: 20 gauge (1) galvanized steel.
Remote Control Cable: 1/4" Ø x 3' (6 Ø x 914) long cable with 1/4" (6) square end. Minimum cable radius 4" (102).
Available Sizes:
6"Ø (152 Ø)
7" Ø (178 Ø)
8" Ø (203 Ø)
10" Ø (254 Ø)
12" Ø (305 Ø)
14" Ø (356 Ø)
Maximum System Velocity: 1600 fpm (8.1 m/s)
Maximum System Pressure: 1 in. wg. (0.25 kPa)
Temperature: -40oF to 240oF (-40oC to 116oC)
