Model RD-10R

Remote Powered Balancing Damper
Single Blade - Round

RD-10R remote powered balancing damper employs a single round blade and a 9VDC actuator for handheld remote air control and balancing. The RD-10R is maintenance free, easy to install, and requires no permanent power source. It is ideally suited for hard ceiling applications or any situation where access to manually adjust the damper is difficult.

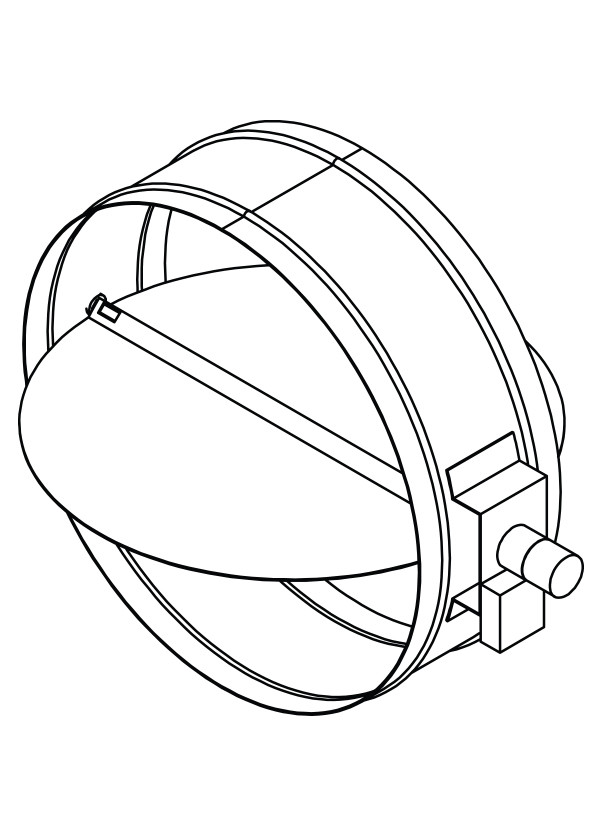

RD-10R Single Blade - Round

Standard Construction

Frame: 6" x 22 ga. (152 x 0.85) galvanized steel.

Blades: 22 ga. (0.85) galvanized steel.

Axles: 3/8" (10) square plated steel.

Bearings: Synthetic.

Operator: 9 volt DC actuator with RJ-11 6P4C connection powered by optional RC-9V handheld remote damper controller.

Minimum Size: 4" Ø (102 Ø)

Maximum Size: 24" Ø (610 Ø)


Maximum System Velocity: 2000 fpm (10.2 m/s)

Maximum System Pressure: 1 in. wg. (0.25 kPa)

Temperature: -0oF to 165oF (-18oC to 73oC)
