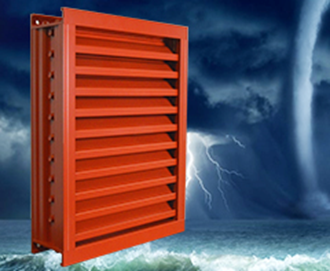

Our EDV-545-MD 5” dual-module louver is engineered and tested to withstand extreme loads, debris impact, and cyclic fatigue associated with the severe weather effects of hurricanes (Miami-Dade County NOA 22-0118.04) while maintaining maximum water infiltration resistance at a minimal louver profile depth. The front (exterior) side of the louver features horizontal J-style blades for a pleasant architectural appearance. The back (interior) side features vertical checron blades which provide superior resistance to wind-driven rain.
Industry leading water penetration performance at 1250 fpm
Pottorff’s new EDV-545-MD Miami-Dade louver features best-in-class water penetration performance. AMCA Certified and Listed. Florida Building Code Approved.
Free Area: 50.2%
Free Area Velocity: 1250 fpm
Air Volume Delivered: 10,038 cfm
EDV-545-MD DUAL-MODULE LOUVERThe aluminum blade option for our CD-93 and CD-94 industrial control dampers gives more standard frame and blade options than our competitor’s dampers.
Rugged Aluminum Airfoil Blades
Ultra-Low Leakage Seals
ALUMINUM BLADE OPTION FOR CDs
NEW Aluminum blade option for our Industrial Control Dampers beats the competition. This option adds rugged aluminum blades with ultra-low leakage to our already sturdy CD-93 and CD-94 damper frame. Allows for more standard frame and blade options.
CD-93/94Our EDV-545 5” severe-duty louver is engineered and tested to withstand extreme loads, debris impact, and cyclic fatigue associated with the severe weather effects of hurricanes, while maintaining maximum water infiltration resistance at a minimal louver profile depth. For installation, the EDV-545 offers a standard continuous angle option. The EDV-545 is AMCA 540 and 550 listed, making it ideally suited for use in hurricane-prone and wind-borne debris regions as per the International Building Code.
EDV-545Pottorff's full range of Miami-Dade louvers are all approved for the 2020 Florida Building Code. These louvers have been engineered and tested to withstand the extreme loads, debris impact and cyclic fatigue associated with the severe weather effects of hurricanes. AMCA Certified and Listed. For ease of installation, our ECV-645-MD vertical blade louver features an optional factory installed sleeve which eliminates the need for direct anchorage to the substrate.
